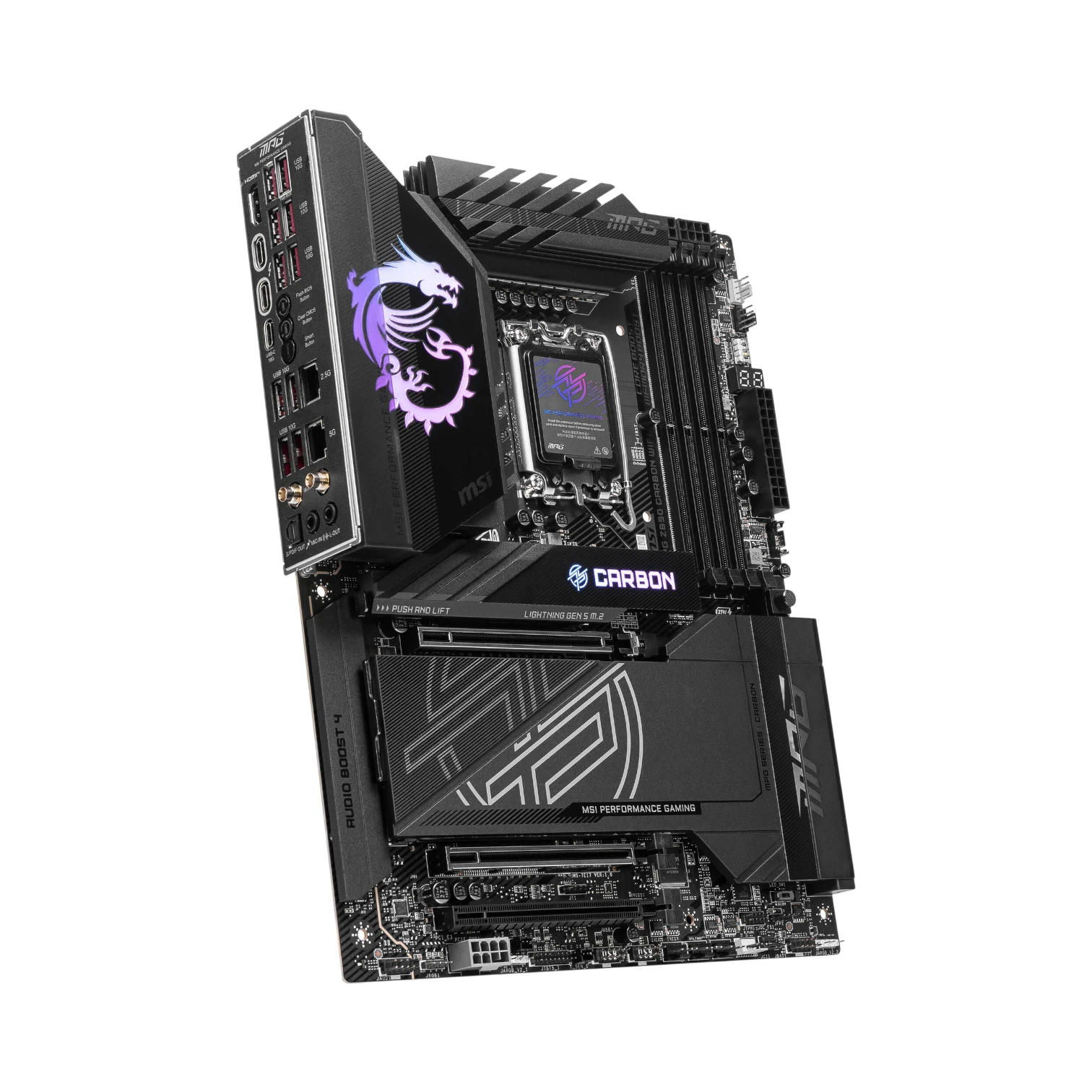

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard

The MSI Z890CARBONWIFI is an ATX motherboard that pairs the Intel Z890 chipset with the LGA 1851 socket, giving Intel Core Ultra Series 2 processors the foundation they need for serious performance. It is built for builders who want fast storage, high memory bandwidth, and rock-solid power delivery in a single, well-organized platform.

Four DDR5 DIMM slots accept up to 256 GB of non-ECC memory and can reach 9200 MT/s when overclocked, so large project files, game textures, or virtual machines load and switch quickly. Five M.2 connectors let you combine lightning-quick SSDs, with one slot wired for PCIe 5.0 x4 speeds and four additional slots available for PCIe 4.0 devices. Three full-length PCIe slots, two of which run at PCIe 5.0 x16, are ready for high-bandwidth graphics cards, capture cards, or other add-in boards.

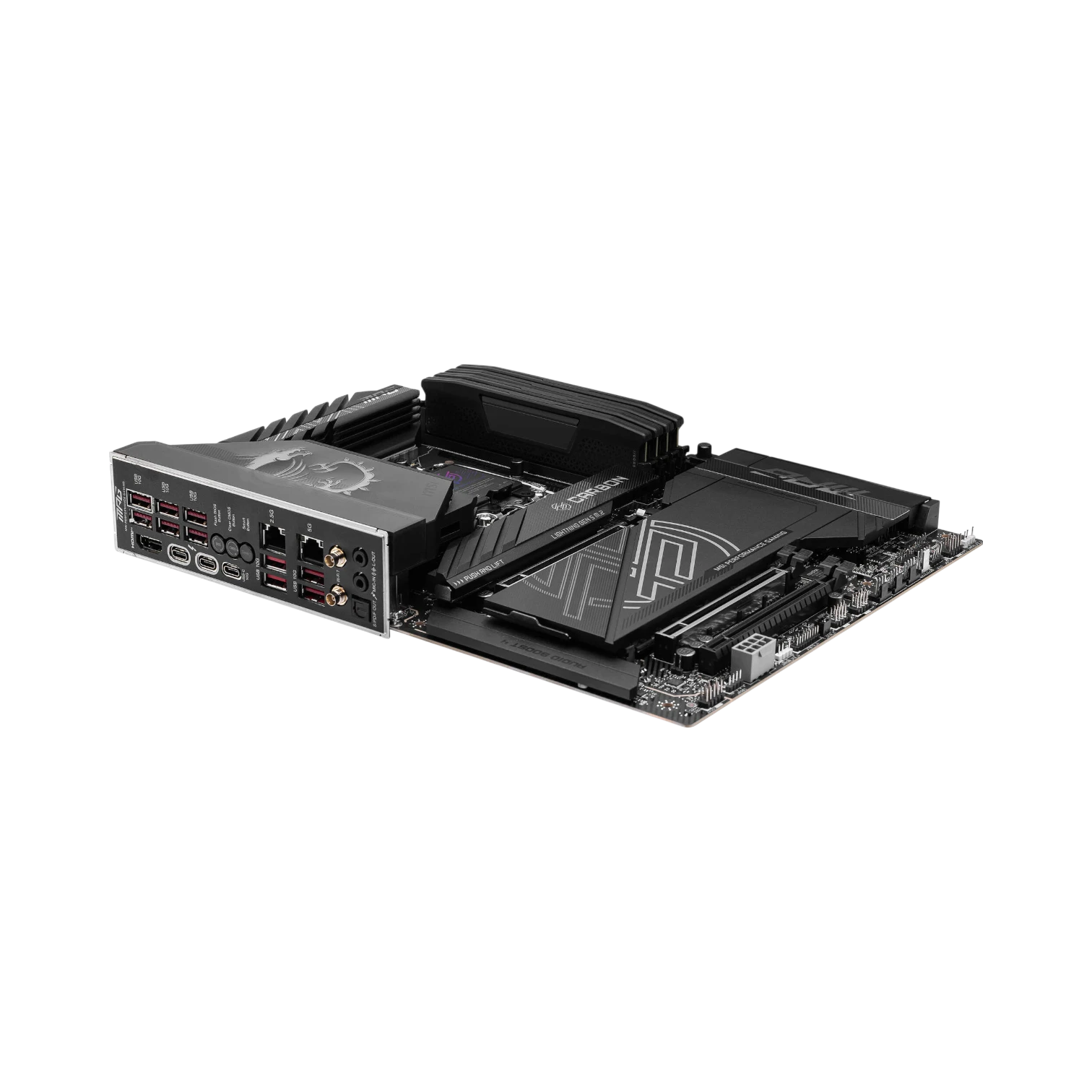

Connectivity is ready for both current and future workflows. The rear panel offers dual Thunderbolt 4 ports that can drive an 8K display or daisy-chain high-speed peripherals, backed by ten USB-A and one rear USB-C port. A front-panel USB-C header delivers up to 20 Gb/s for fast external storage or charging.

Networking covers almost every scenario. A 5 GbE jack handles demanding NAS transfers, a 2.5 GbE port manages everyday traffic, and integrated Wi-Fi 7 with Bluetooth 5.4 keeps wireless devices and high-speed routers connected without cabling. Audio comes from a Realtek ALC1220P codec that powers 7.1-channel setups for clear game cues or production monitoring.

The board’s 20 + 1 + 1 + 1 power stage design with 110 A smart power stages keeps voltages stable during long rendering sessions or sustained gaming marathons. Whether you are assembling a 4K gaming rig, a content-creation workstation that edits 8K footage, or a development environment filled with virtual machines, this motherboard provides the bandwidth, expansion, and stability to keep your workflow moving.

Highlights:

• Intel Z890 chipset with LGA 1851 socket for Intel Core Ultra Series 2 processors
• Four DDR5 DIMM slots, up to 256 GB and 9200 MT/s (OC)
• Five M.2 connectors including one PCIe 5.0 x4 slot
• Two PCIe 5.0 x16 slots plus an additional x16 slot for expansion
• Dual Thunderbolt 4 ports with 8K display support
• 5 GbE and 2.5 GbE Ethernet, plus Wi-Fi 7 and Bluetooth 5.4
• 20 + 1 + 1 + 1 power stage design with 110 A smart power stages
• Front-panel USB-C header supporting 20 Gb/s
• Realtek ALC1220P codec delivering 7.1-channel audio
• Four SATA III ports for additional storage devices
